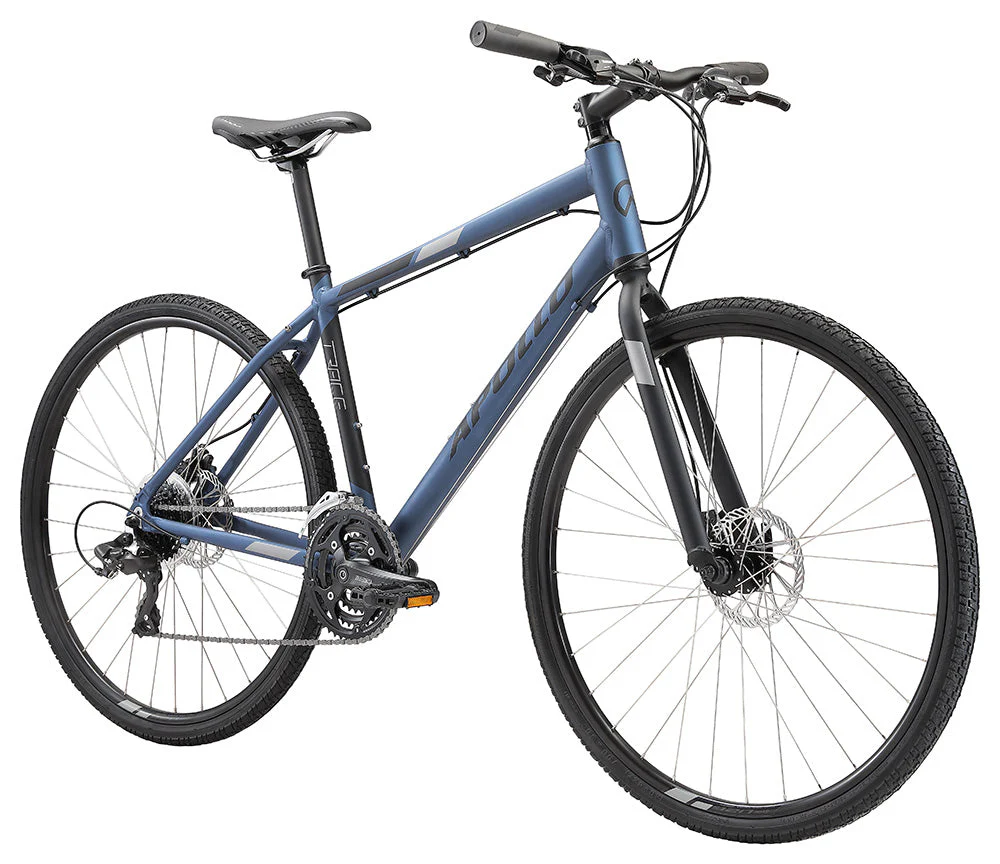

Apollo Trace 20 Urban Bike Small

FRAME
6061 butted alloy frame with integrated head tube, pannier mounts and replaceable derailleur hanger

FORK
700c disc specific hi-ten rigid integrated trekking fork with rack and fender mounts

HEADSET
A-head semi integrated 1-1/8" with 10mm cone spacer

HANDLEBAR
Alloy low riser, bore: 31.8mm, W: 600mm, sweep: 6°

GRIP
Kraton ERGO comfort grip

HEADSTEM
Alloy, 31.8mm, S=70mm, M/L=90mm, XL=105mm

CRANKSET
Suntour XCE 48 x 38 x 28T L: S/M=170mm, L/XL=175mm

BOTTOM BRACKET
Cartridge bottom bracket

PEDALS
Low profile high impact resin

FRONT DERAILLEUR
Shimano FD-TY710

REAR DERAILLEUR
Shimano RD-TX800 8 speed

SHIFT LEVERS
Shimano EF-500 Ez Fire 24 speed

CASSETTE
Shimano 8 speed cassette 12-32T

CHAIN
KMC Z-7

BRAKES
JAK-8 mechanical disc brakes with 160mm rotors

WHEELS
700c Weinmann U-26 double wall disc specific rims, 32 hole A/V, alloy quick release disc hubs with stainless spokes

TYRES
Kenda Urban Sport 700 x 38c wire bead

SADDLE
Apollo Ergotech dual density saddle

SEATPOST / CLAMP
Alloy 27.2mm micro adjust
