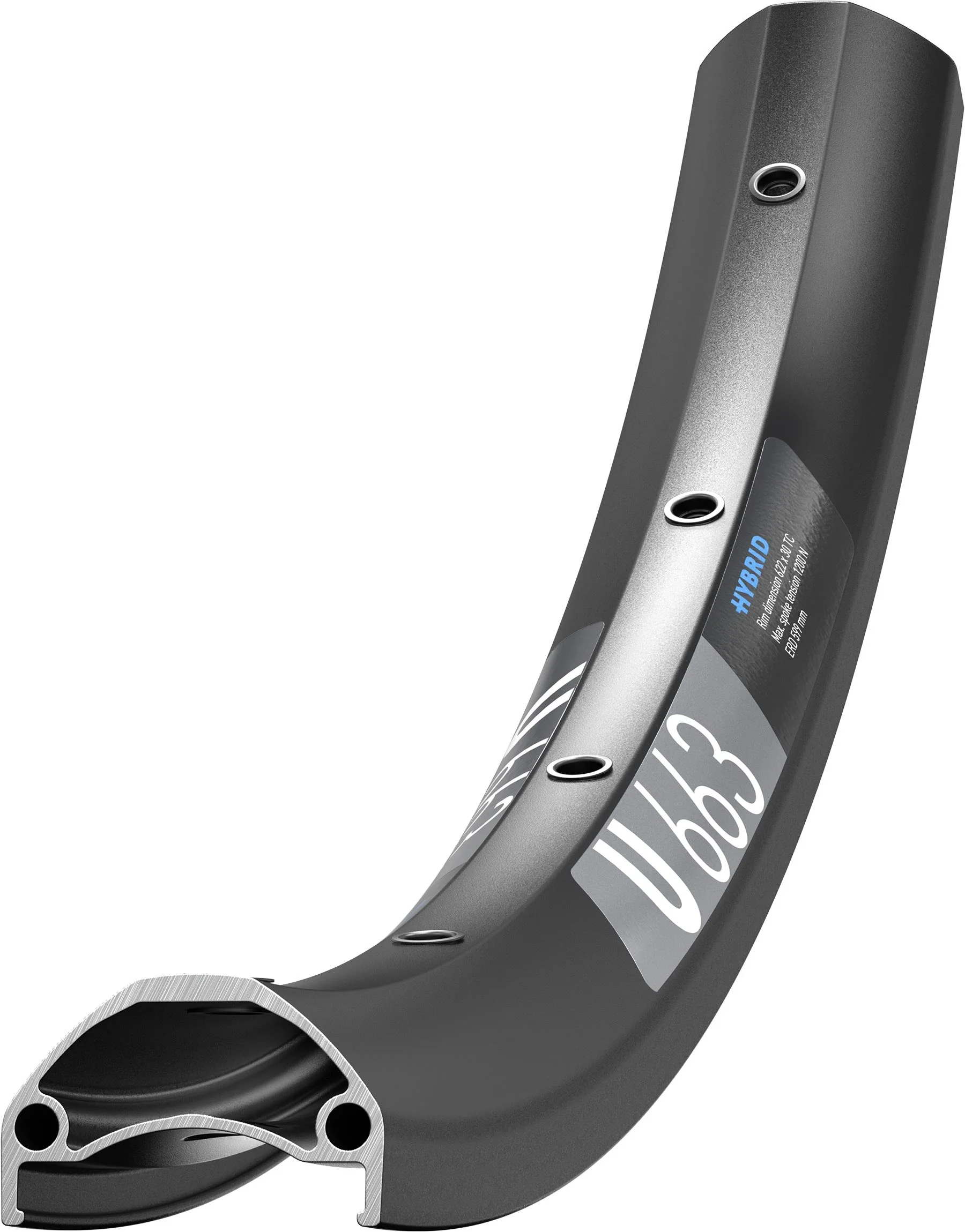

DT Swiss Rim U663 29 Inch X 30mm DB 36H

GENERAL

• Field of application : U

• Product type : 663

• Rim joint : Pin joint

• Color : Black

• Net weight [g] : 760.000

• Recommended system weight max. : 180 kg,180 kg

• ASTM classification : 2.2

• Aproved for e-bikes : Yes (max. 32Km/h or max. 250W)

• Material : ALUMINIUM

• Tire interface : Hooked / Crotchet tubeless TC

• Brake interface : Disc

DIMENSIONS

• Rim diameter : 622 mm (29" / 700C)

• Reference diameter ERD : 599 mm

• Inner width : 30 mm

• Outer width : 35 mm

• Rim height : 22 mm

HOLES

• Number of holes : 36

• Spoke bore rim : Black eyelet

• Valve hole : Schrader (plus Presta-adapter)

ACCESSORIES

• Inclusive valve adapter AV to : Valve adapter AV to SV
